Szczegóły Produktu:
|
| Product Name: | Electric Chain Hoist | Sling Type: | Chain |
|---|---|---|---|
| Lift Speed: | 1.1-7.2m/min | Motor: | Nanjing special motor |
| Power Supply: | 380V 50Hz or on request | Maximum Lifting Height: | 30m |
| Condition: | New | Usage: | Construction Hoist,Mining Hoist,Material Handling,portable |
| Color: | Customised | Warranty: | 3 YEAR |
Factory wholesale industrial Strong Transporting electric chain hoist
Electric Chain Hoist Description:
Electric Chain Stage Hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.
Electric Chain Hoist Drawing:
Electric Chain Hoist Data:
| Single Speed | Technical Parameters | |||||||||
| Model | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 |
| Rotation Speed(R/Min) | 1440 | |||||||||
| Insulation Grade | F | |||||||||
| Power Supply | 3P 220V-690V | |||||||||
| Control Voltage | 24V/36V/48V | |||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
| Dual Speed | Technical Parameters | |||||||||
| Model | 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor Power(Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation Speed(R/Min) | 2880/960 | |||||||||
| Insulation Grade | F | |||||||||
| Power Supply | 3P 220V-690V | |||||||||
| Control Voltage | 24V/36V/48V | |||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 54 | 74 | 144 | 150 | 86 | 148 | 159 | 168 | 102 | 184 |
Detailed Images:
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC G80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist & Single phase electric chain hoist is optional

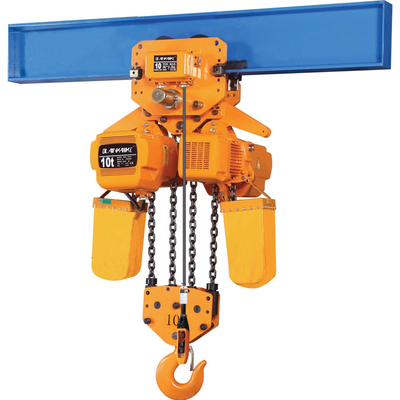

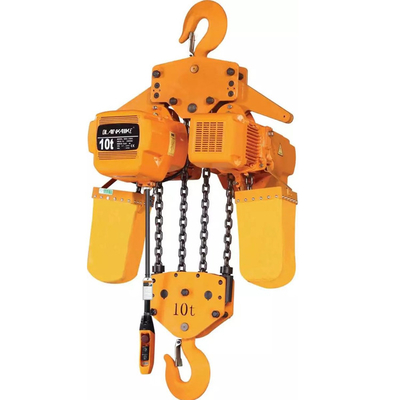

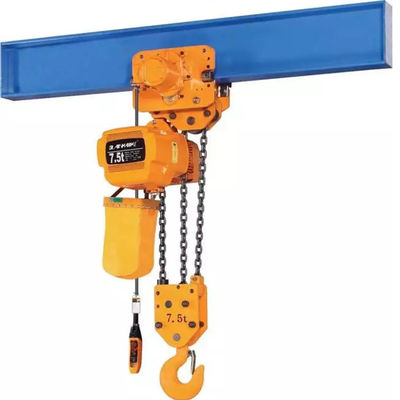

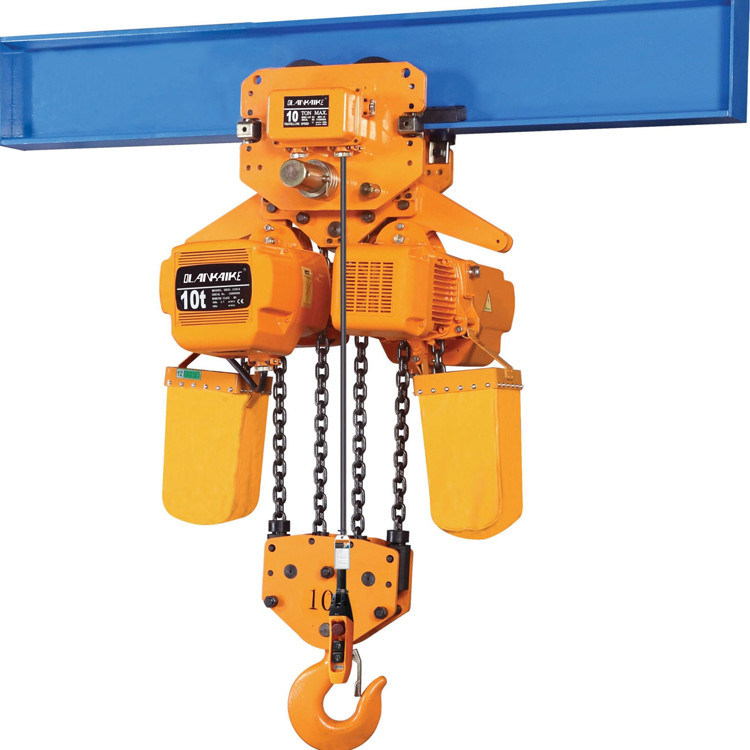

Different Types of Electric Chain Hoist
Electric Chian Hoist Application
Packing and Delicery:
